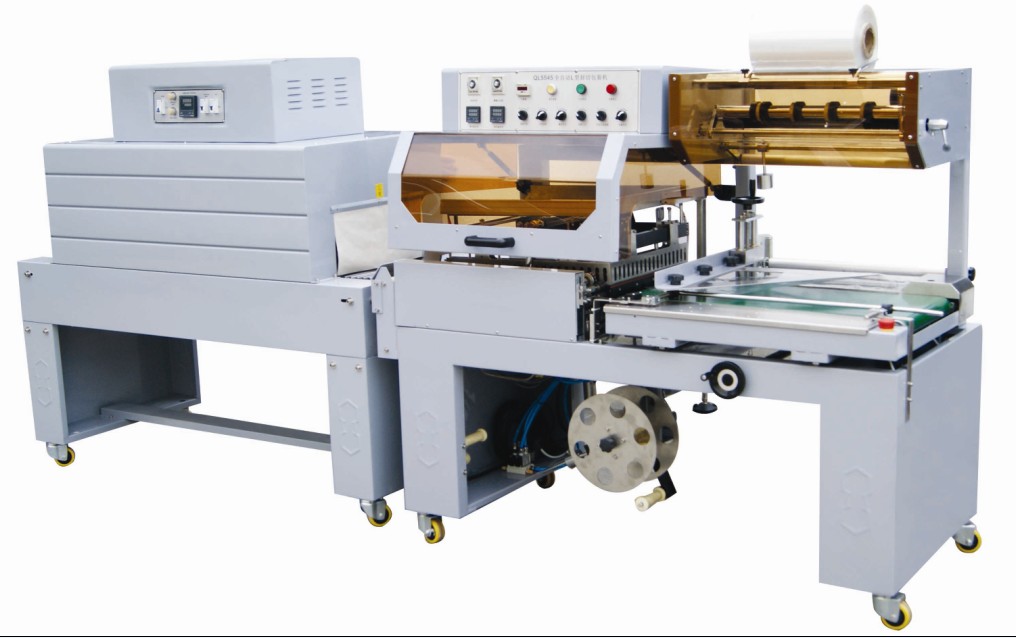

全伺服邊封滾刀熱收縮包裝機
型號 Model | 150 | 180 | 210 | |||
包裝尺寸 Packing size | L：袋長 | L:100mm-450mm | L:150mm-530mm | L:180mm-600mm | ||
W：物寬 | 30mm-350mm | 30mm-350mm | 30mm-350mm | |||
H：物高 | 35mm-70mm | 65mm-100mm | 80mm-130mm | |||
電 源Power Supply | 包裝機：220V/50-60Hz | 收縮爐380V/50-60Hz/3phase | ||||
速度highest speed | 80包/分；80 packs / min. | |||||
適用薄膜Applicable film | POF對折膜；POF folded film | |||||
薄膜 Maximum film | 530mm(寬)×280mm（外徑）；530 mm (width)x 280 mm | |||||
功率 power | 5.5kW+14.5KW | |||||
氣壓 Air pressure | ≤0.5MPa(5 bar) | |||||
機械尺寸Mechanics size | 包裝機：2300*1200*1600mm | |||||
收縮爐尺寸：2600*800*1650mm | 爐道尺寸：2300*400*230mm | |||||
機械重量Mechanical weight | 包裝機：650kg | 收縮爐:400kg | ||||
